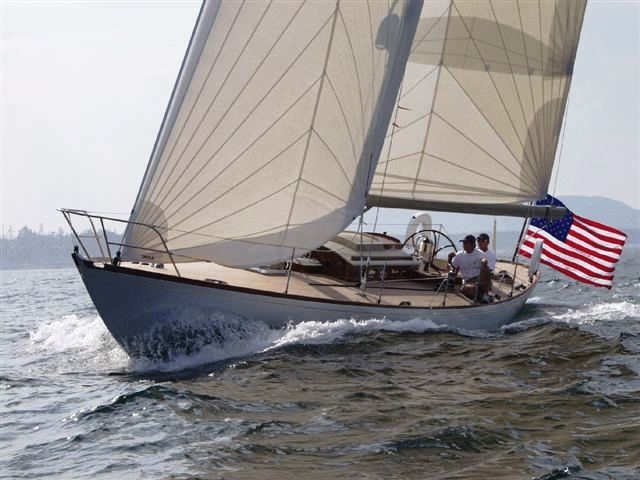

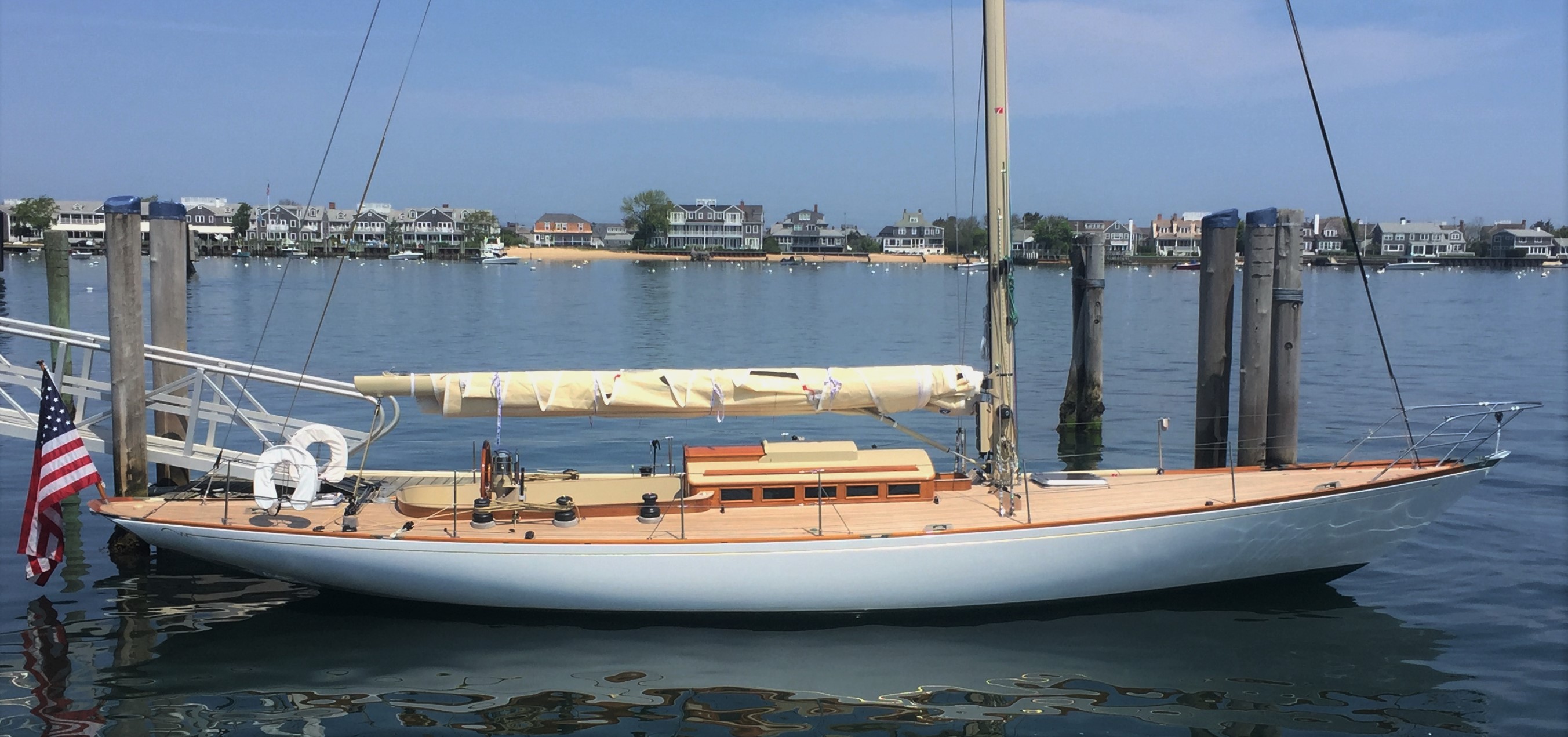

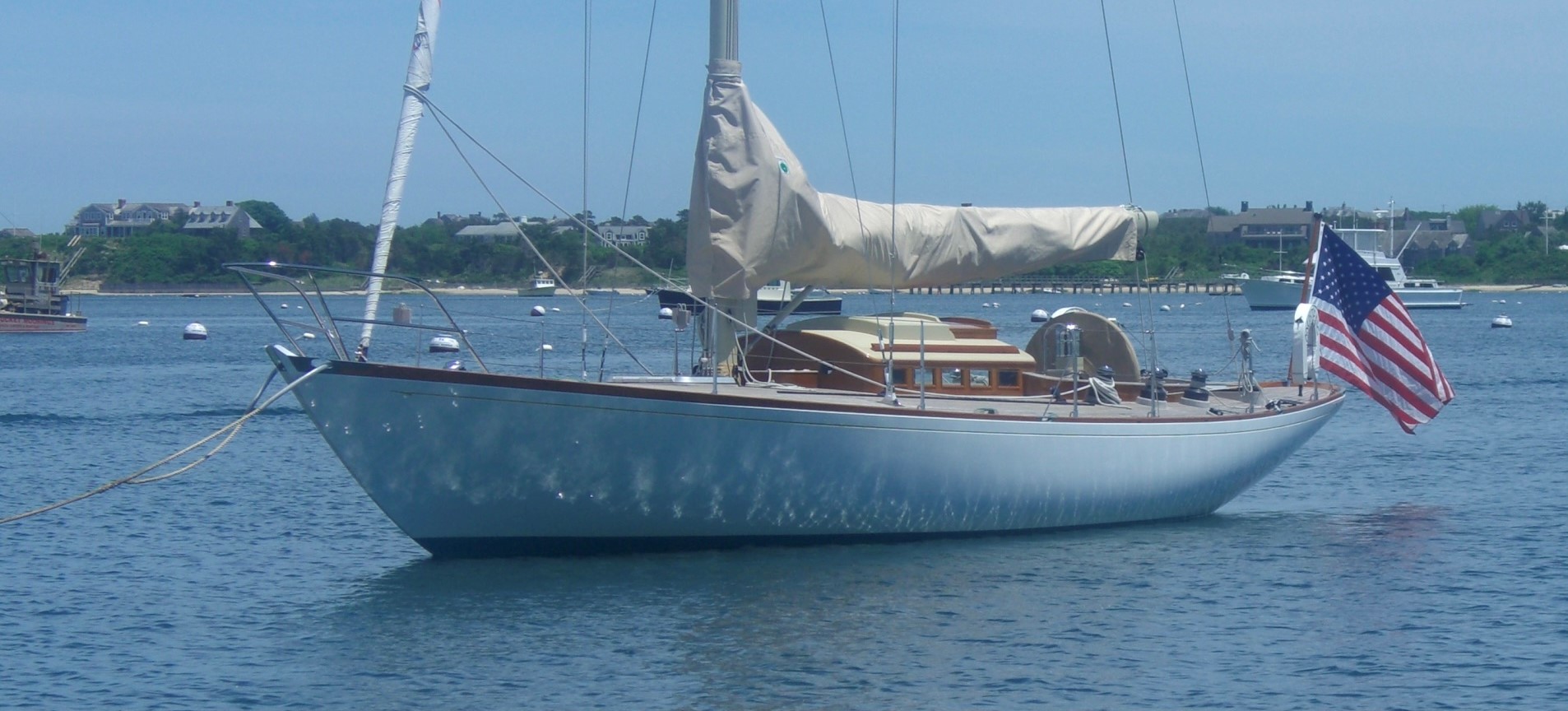

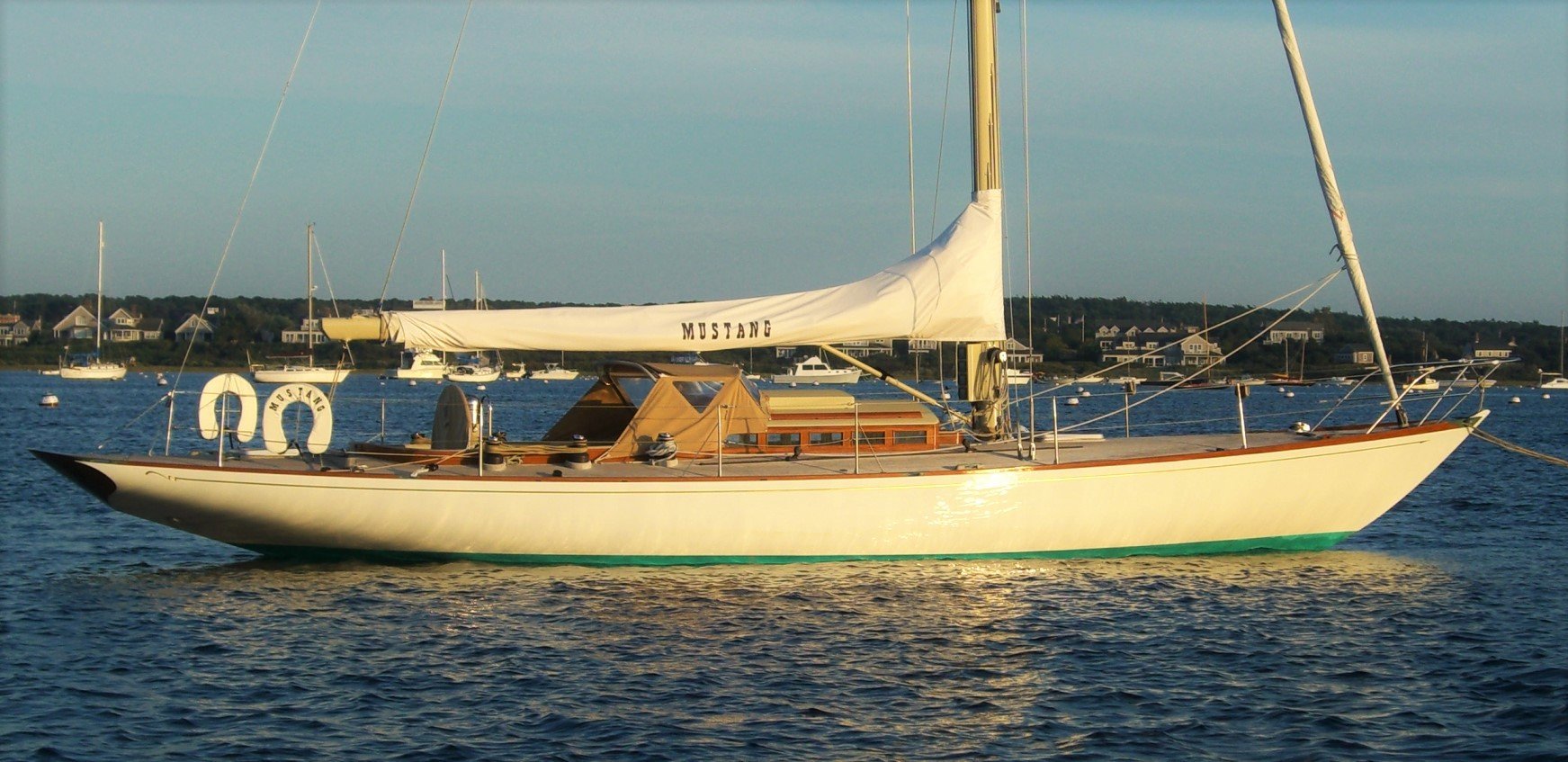

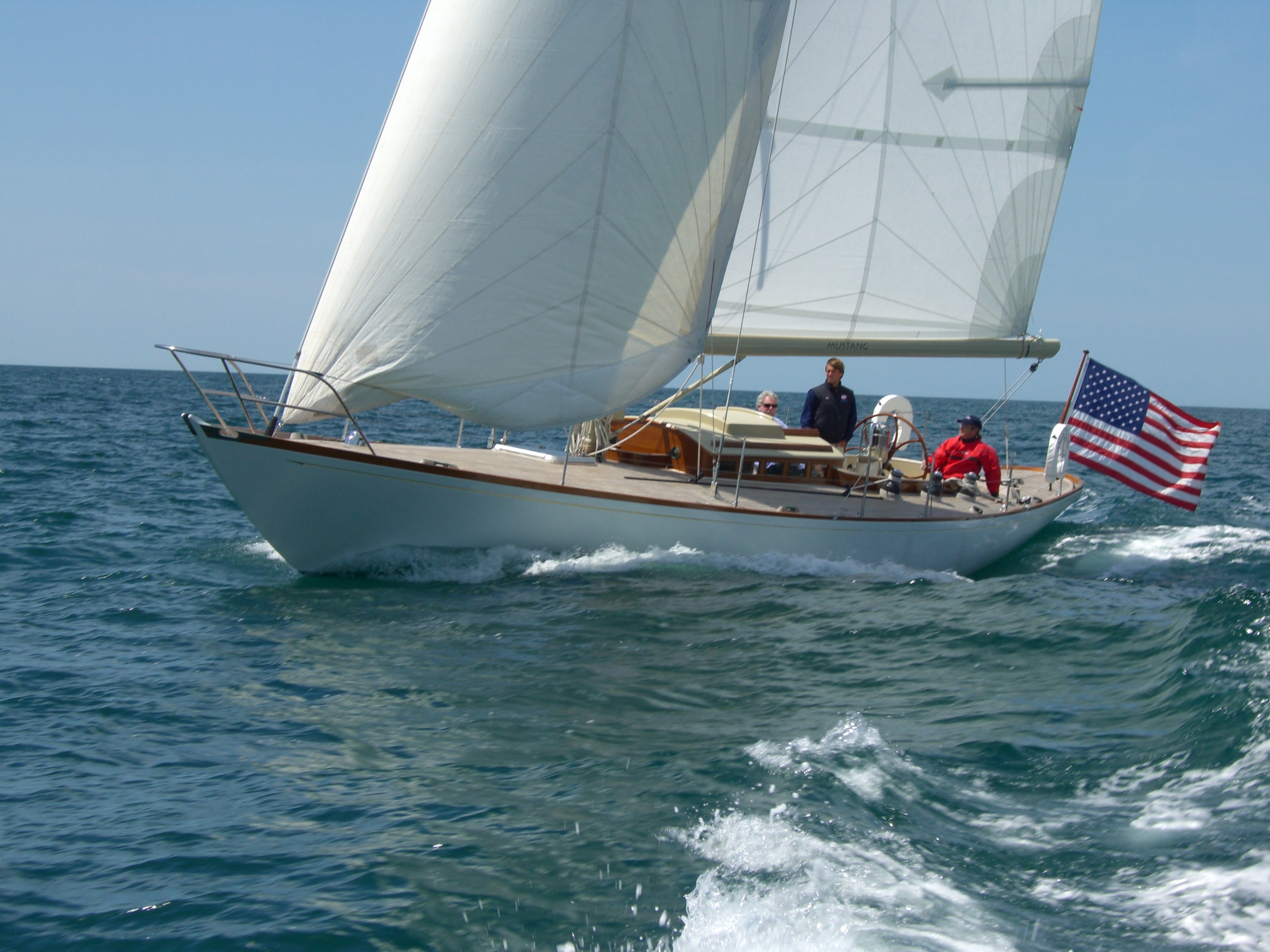

Mustang — W-Class W-46 Sloop

First introduced in 2001 Mustang and her sister W-46’s have proven themselves to be more than equal to their intended tasks of being a visually stunning Spirit of Tradition style yacht for use by her owners as a lively day-sailor, highly competitive racer and / or comfortable cruiser. Mustang underwent a comprehensive refit at Rockport Marine in which she was optimized for racing while still keeping all her classic characteristics and charm. Excellently maintained and equipped Mustang is more than ready and raring to go for this years sailing season. A recent and dramatic reduction in asking price is all the more reason to give Mustang serious consideration. New Sale Price: $500,000

Hull and Deck Construction

• Cold-molded, wood-epoxy hull construction
• Marine plywood decks with teak decking over lay
• Varnished teak toe rails and taff rail
• Varnished teak cabin sides, front and back
• Marine plywood cabin top over laid with Dynel cloth set in epoxy and painted traditional Buff color
• Varnished teak handrails on cabin top
• Varnished teak companionway hatch, trim and drop boards
• Fin keel with trailing ballast bulb
• Balanced carbon fiber rudder
• Topsides: White with Gold cove stripe and no boot stripe
• Bottom: Green anti-fouling paint
• Deck Hardware and Features

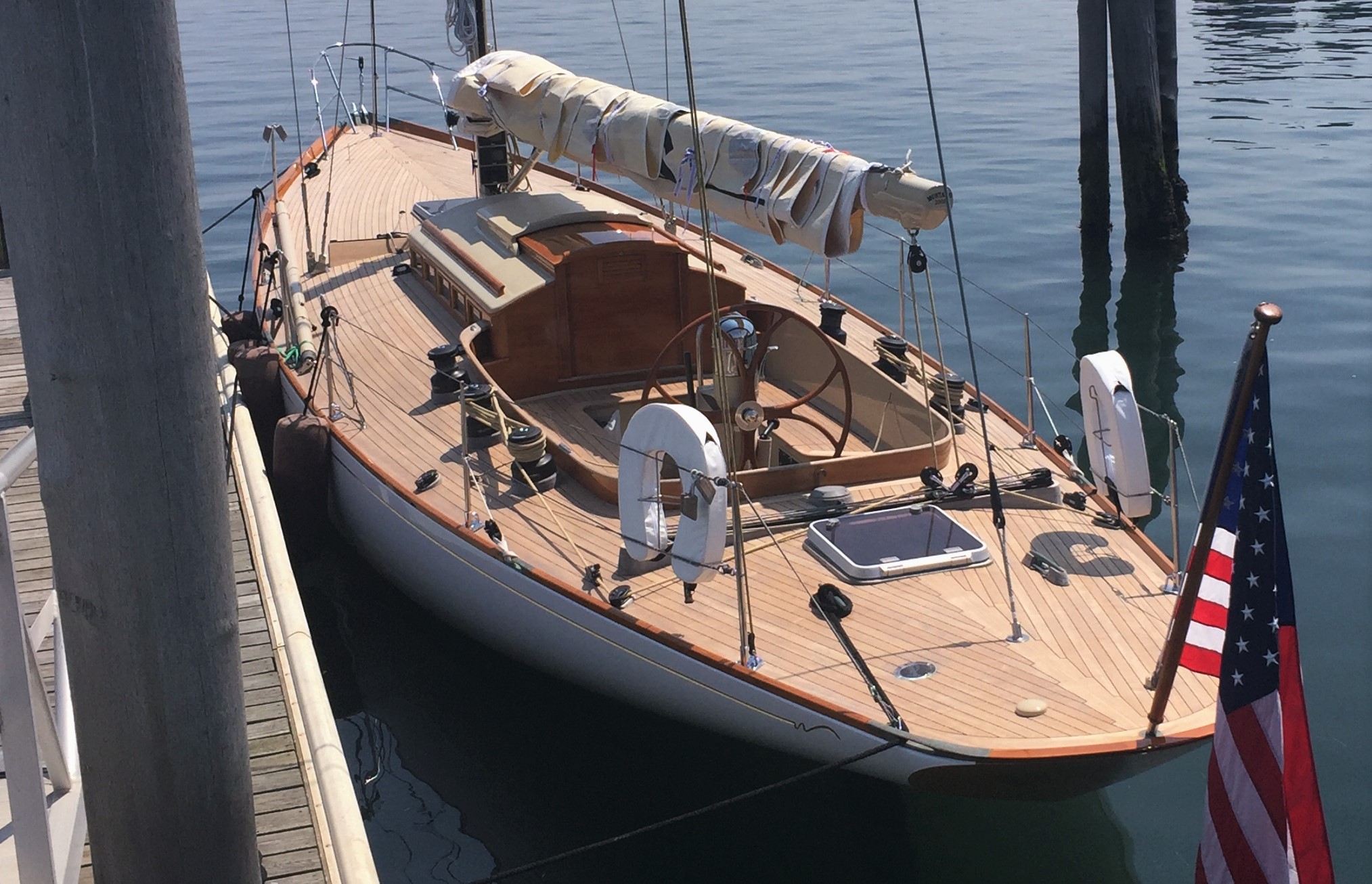

• Teak deck, cockpit seat tops, helm seat and cockpit sole
• Cast bronze chocks forward, midships and aft
• Cast bronze docking cleats forward, midships and aft
• Cast bronze bow / anchor roller
• Stainless steel bow pulpit
• Stainless steel double lifeline stanchions with opening gates port and starboard
• Dyneema soft lifelines with opening gates port and starboard
• Stainless steel shroud chainplates
• Stainless steel stem iron with head stay attachment point under deck
• Lewmar hatch on foredeck (to head area below decks)
• Bronze deck fills (water) port and starboard midships
• Custom Floating jib sheeting and in-hauling system with control lines lead under deck
• Lewmar hatch to aft /storage lazzerette

Interior Accommodations

• The interior of MUSTANG can be best described as “moderately spartan” as is fitting for her normal use as a day sailor
• and performance oriented Spirit of Tradition racer with little below that is unnecessary but just enough for comfortable
• cruising or to act as a crew bunk house at away from home regattas.
• It should be noted that the entire interior of MUSTANG is finished off in the Herreshoff style of white painted surfaces
• accented by varnished teak joinery and trim. The description of MUSTANG’s interior from fore to aft is as follows.

Forward Cabin

• This area is completely open and is presently used for sail and gear storage. This space is large enough to install sleeping
• accommodations either in the way of removable pipe berths or a fixed V-berth with storage areas below the berth
• platform. An overhead dome light provides artificial light to this area. There is a water-tight / crash bulkhead forward
• and a fixed bulkhead aft with opening to the head area next aft

Head Area

• The head area occupies the space between the forward cabin bulkhead and the main bulkhead and is accessed from the
• main cabin by way of an opening in the main bulkhead just to the starboard side of centerline. Like forward cabin this
• space is mostly open. At present there are no features to the starboard side outboard of the opening from the main
• cabin. This space could easily be adapted to act as a hanging locker or perhaps as a space for a countertop / vanity with
• sink basin and water. On centerline in the head area is the mast step. Outboard (to port) of the mast step is a fixed
• marine toilet plumbed for discharge overboard or to the black water holding tank for shore side pump out and is also
• plumbed to allow for overboard discharge from the holding tank when offshore. Further outboard (to port) is a
• countertop and locker space that houses the head plumbing and provides for some storage space. An overhead dome
• light provides artificial light to the head area with additional natural light and ventilation provided by a large Lewmar
• deck hatch overhead. There is a privacy curtain that closes off the view thru the opening in the main bulkhead which
• leads aft to the main cabin next to be described.

Main Cabin Area

• Furthest aft of the interior spaces of MUSTANG is the main cabin that includes galley, navigation station and
• accommodations for relaxation, dining and sleeping. There are settee style berths port and starboard with water tanks
• located under each settee and bin storage outboard. Aft to port is the galley area with new varnished teak countertop,
• stainless steel sink basin, manually supplied cold water and storage areas below the countertop and storage lockers outboard. Aft to starboard is the navigation station with electronics mounted outboard of the varnished teak countertop
• under which is housed a well-insulated ice box along with drawer storage and hidden trash bin. The main cabin area is
• well lit with overhead dome lights and brass reading lights at the aft end of each settee. Additional natural lighting is
• provided by fixed ports in the cabin sides. Companionway stairs aft lead to the cockpit and with stairs removed there is
• very good access to the engine and other mechanical systems.

Auxiliary Propulsion and Fuel Systems

• Yanmar 3GM30 diesel, 30 HP
• Engine Year: 2000
• Current Engine Hours: 2,000
• Yanmar engine ignition panel and gauges
• Single lever engine throttle and gear selector control
• Sail Drive unit
• 2-Blade bronze Max Prop
• Cast bronze deck fill (Fuel) in cockpit sole
• Fuel tank capacity: 30 Gallons
• Parker / Racor water separator fuel filter
• Groco ARG-50 raw water filter

Steering System

• Edson wheel and quadrant steering
• Carbon fiber steering quadrant
• Edson pedestal with stainless steel binnacle guard
• Custom W-Class varnished teak steering wheel

Plumbing and Waste Systems

• 30 Gallon freshwater capacity stored in tanks located under main cabin settees
• Cold fresh water supplied to galley sink basin by manual hand pump.
• Marine toilet plumbed for overboard discharge or to holding tank.
• Hold tank plumbed for shore side pump out or overboard discharge offshore
• 25 Gallon holding tank capacity

Electrical Systems

• Lighting batteries, 2 each / 12-volt, starboard sail locker
• Engine start battery, 1 each / 12-volt, port sail locker
• Guest 4 position master battery selector switch
• 12 Volt DC circuit panel
• 12 Volt outlets (3 each)
• AC / Shore power inlet and control / circuit panel in lazzerette
• 30 Amp shore power cord (2ea)
• AC outlet at navigation station
• Battery charging by engine mounted alternator and Xantrex Freedom X inverter / charger
• Lightning ground system

Electronics and Navigational Equipment

• B&G radar and GPS chart plotter display
• B&G Radome and horn / hailer on stern deck mounted carbon fiber post
• GPS antennas (2) mounted on aft deck
• B&G Autopilot
• B&G sailing instruments with menu selector at helm and below
• B&G “Tall Boy” AWI masthead wand
• Icom IC-M604 VHF with remote Mic at helm
• Bose cockpit speakers
• VHF radio with remote Mic at helm
• Ritchie helm compass with polished stainless steel binnacle cover

Spars and Rigging

• Hall Spars might modules carbon fiber mast
• Hall spars carbon fiber boom and spinnaker pole
• Stainless steel rod standing rigging
• Kevlar backstay
• Harken (under-deck) roller furling headstay (new 2021)

Sail Handling and Trim Equipment

• Harken Performa 50, 2-speed, self-tailing winches port and starboard in cockpit (4 winches)
• Harken Performa 50, 3-speed, self-tailing winches port and starboard in cockpit (2 winches)
• Harken Performa 40 2-speed, self-tailing winches on mast (2 winches)
• Harken continuous line main sheet traveler
• All turning blocks Harken
• Antal mainsheet stoppers
• Hydraulic pump / control panels for main sail control (outhaul, cunningham and vang) port and starboard in cockpit just
• forward of helm
• Hydraulic pump / control panel for jib sheet floating lead system at forward end of cockpit
• Harken carbon fiber hydraulic pump lever handles (2 each)
• Harken winch handles (4 each)
• Line bags
• Sheets and lines for all sails

Sails and Canvas

• Cockpit dodger and frame
• Custom canvas pedestal storage unit for hydraulic lever and winch handles
• Canvas covers for interior cushions
• Racing 3di mainsail (North Sails)
• Cruising 3di mainsail (North Sails)
• J-1 Racing 3di jib (North Sails)
• J-2 Racing 3di jib (North Sails)
• J-3 Racing 3di jib (North Sails)
• Roller-furling cruising jib (Quantum)
• Code zero and furler (North Sails)
• Staysail with internal stay and furler (North Sails)

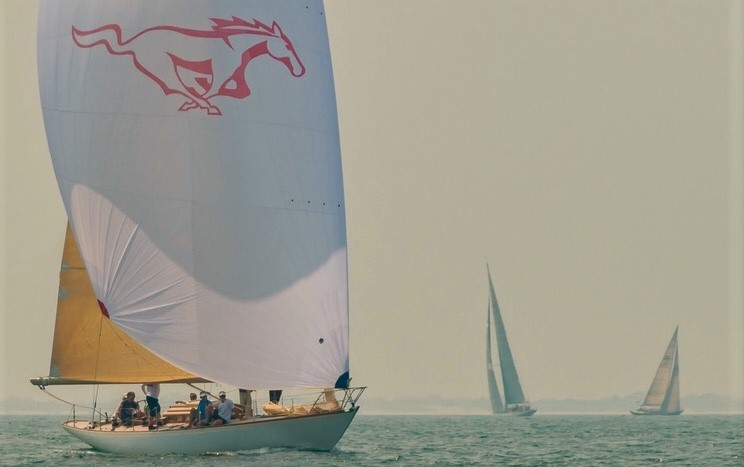

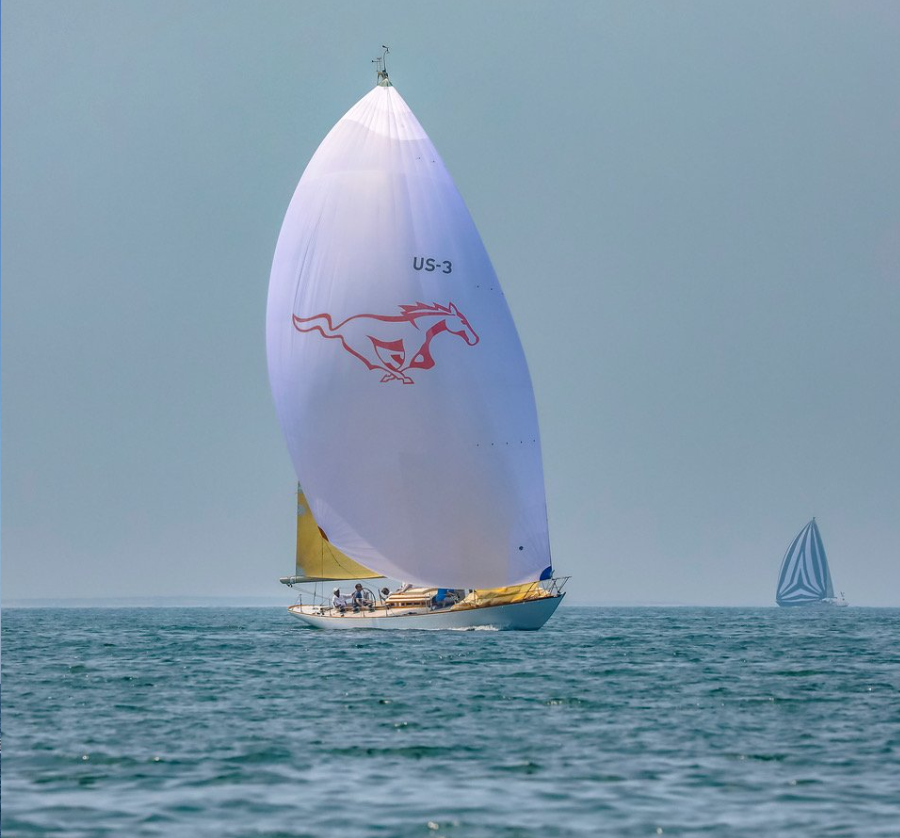

• A-2 Spinnaker (North Sails)
• A-3 Spinnaker (North Sails)
• WOW (wing on wing) down-wind sail (North Sails)

Ground Tackle Equipment

• Claw anchor in chain locker forward

Dewatering Equipment

• Whale Gusher manual bilge pump

Safety Equipment

• Revere Coastal Commander 6-man life raft
• PFD’s 3
• Fire Extinguishers 3
• Life Ring

Additional Equipment

• Bosuns chair
• Dock lines
• Fenders with pile fender covers (5)
• Upper companionway drop board louvered for ventilation
• Ensign and flag staff
• Pig Stick
