Gartside 17 — Cold-Molded Electric Launch

A change in plans for the Seller makes this classic and classy electrically powered launch available to her next stewards. Only launched this past year this smart looking and smartly powered vessel has only been dry sailed with her Seller bringing her home on her trailer after use and plugging her in, so she’ll be ready and waiting for her next excursion.

Perfect for silent morning bird watching, lazy lunches in protected coves or sunset libations and harbor cruise this electric launch is offered well (exceedingly) below her recent cost to build.

Contact us for further info.

Hull, Deck and Cockpit Construction

• Full keel with bronze keel shoe extending aft to rudder heel
• Laminated Mahogany stem
• Fir keelson and deadwood
• Cold-molded, wood-epoxy hull of Cedar strip plank and double diagonal veneers overlaid with 6 oz. FRP cloth and painted finish
• Marine plywood decks overlaid with 6 oz FRP cloth and painted (White) finish.

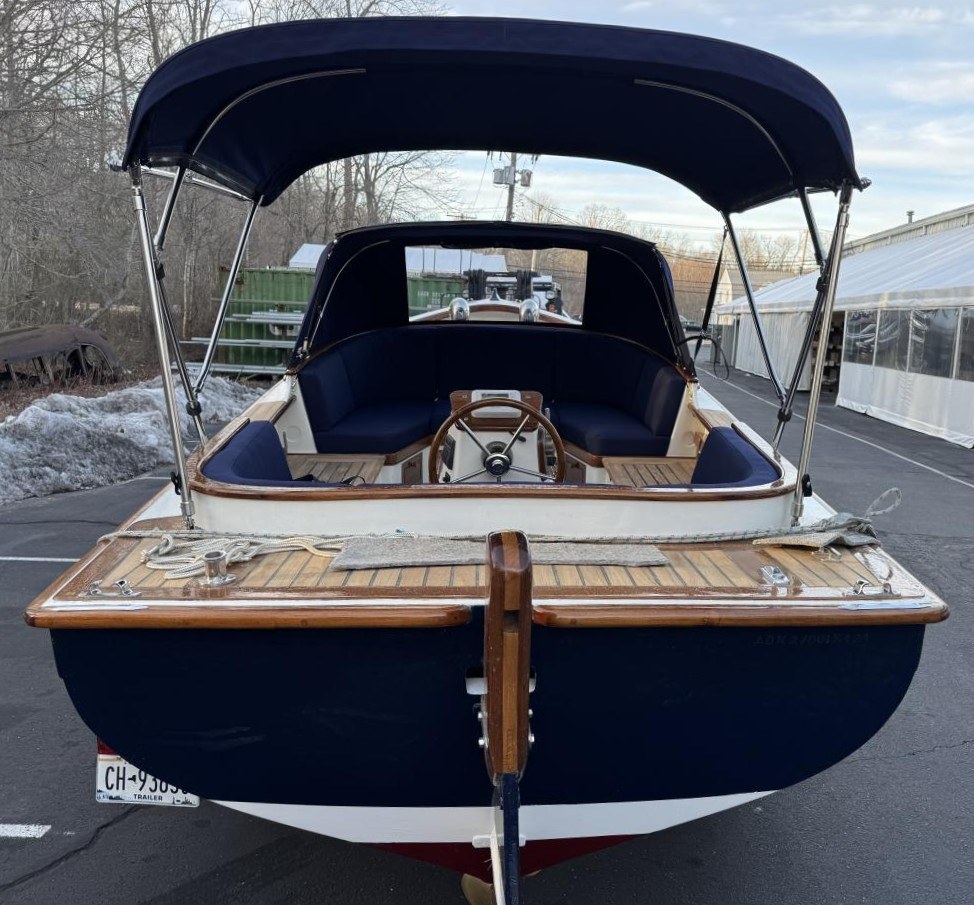

• Aft deck, cockpit sole and anchor well sole overlaid with bare teak decking and varnished margin boards.
• Varnished Teak rub rail at sheer, taff rail, anchor well coaming, cockpit coaming caps and steering pedestal trim.
• Interior Joinery and Trim: Varnished Teak and Mahogany

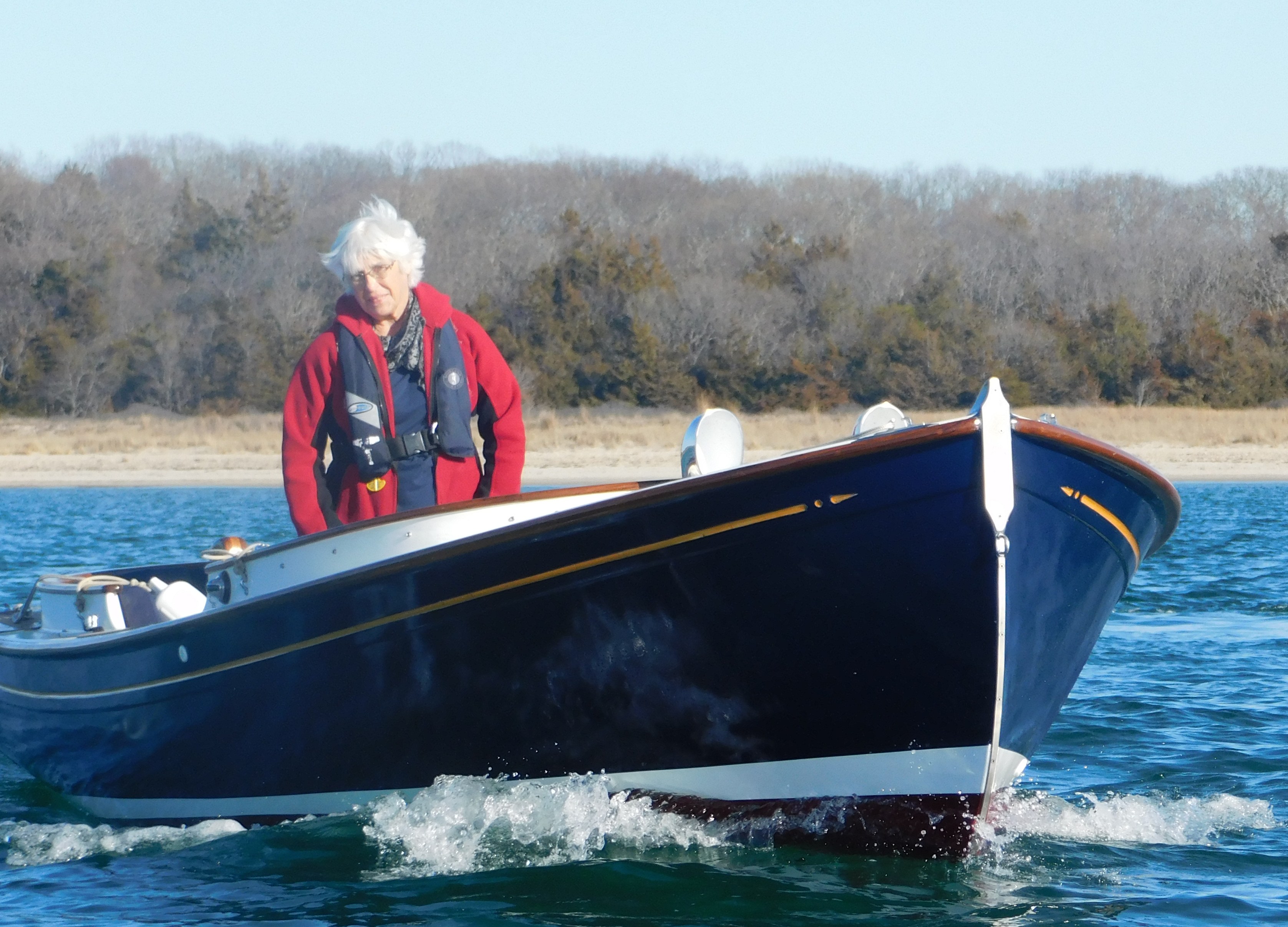

Color Scheme

• Bottom: Red anti-fouling paint
• Boot Stripe: Single wide White stripe
• Topsides: Dark Blue
• Cove Stripe: Gold
• Decks & Cockpit: White forward, side decks, cockpit coamings, forward cockpit seating, steering console and interior cockpit joinery fronts. Bare Teak boarding steps at port and starboard side decks. Laid bare Teak aft deck with varnished margin boards. Laid teak cockpit seating to port, starboard and aft of steering console. Laid teak seat at forward end of steering console. Laid bare teak cockpit sole.

Deck Hardware and Features

• Stainless steel U-bolt installed at stem for trailer cable
• Stainless steel stem plate
• Stainless steel bow docking line chocks and cleats port and starboard
• Stainless steel dorade vents / cowls port and starboard aft of anchor well
• Port and starboard navigation lights on cockpit coaming sides port and starboard
• Bare Teak boarding steps port and starboard
• Stainless steel aft docking line chocks and cleats aft
• Stainless steel ensign staff holder aft deck to port.
• Stainless steel stern navigation light aft deck to starboard

Auxiliary Propulsion

• E-Yacht Quiet Torque 10KW (48-Volt) electric motor
• Cruising Range: 24 hours at 3.5 knots / 11 hours at 5 knots
• E-Yacht electric motor and battery status systems monitor at helm
• E-Yacht single lever engine speed and shaft rotation control and key start at starboard side of center console
• PSS Dripless shaft seal
• 316 Stainless steel propellor shaft, 1”

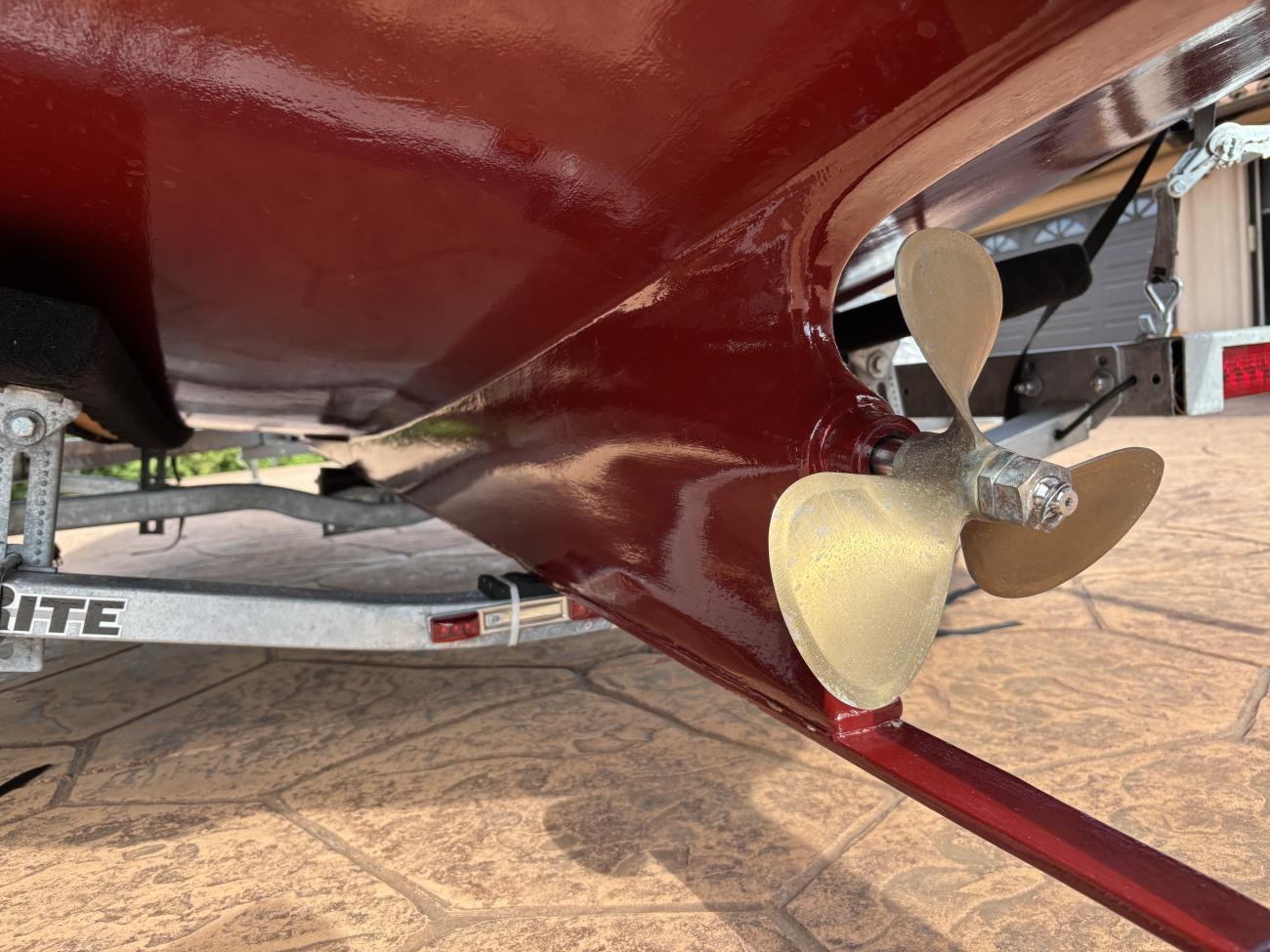

• Fixed 3-blade Bronze propellor 10” D x 10” P

Steering Systems and Equipment

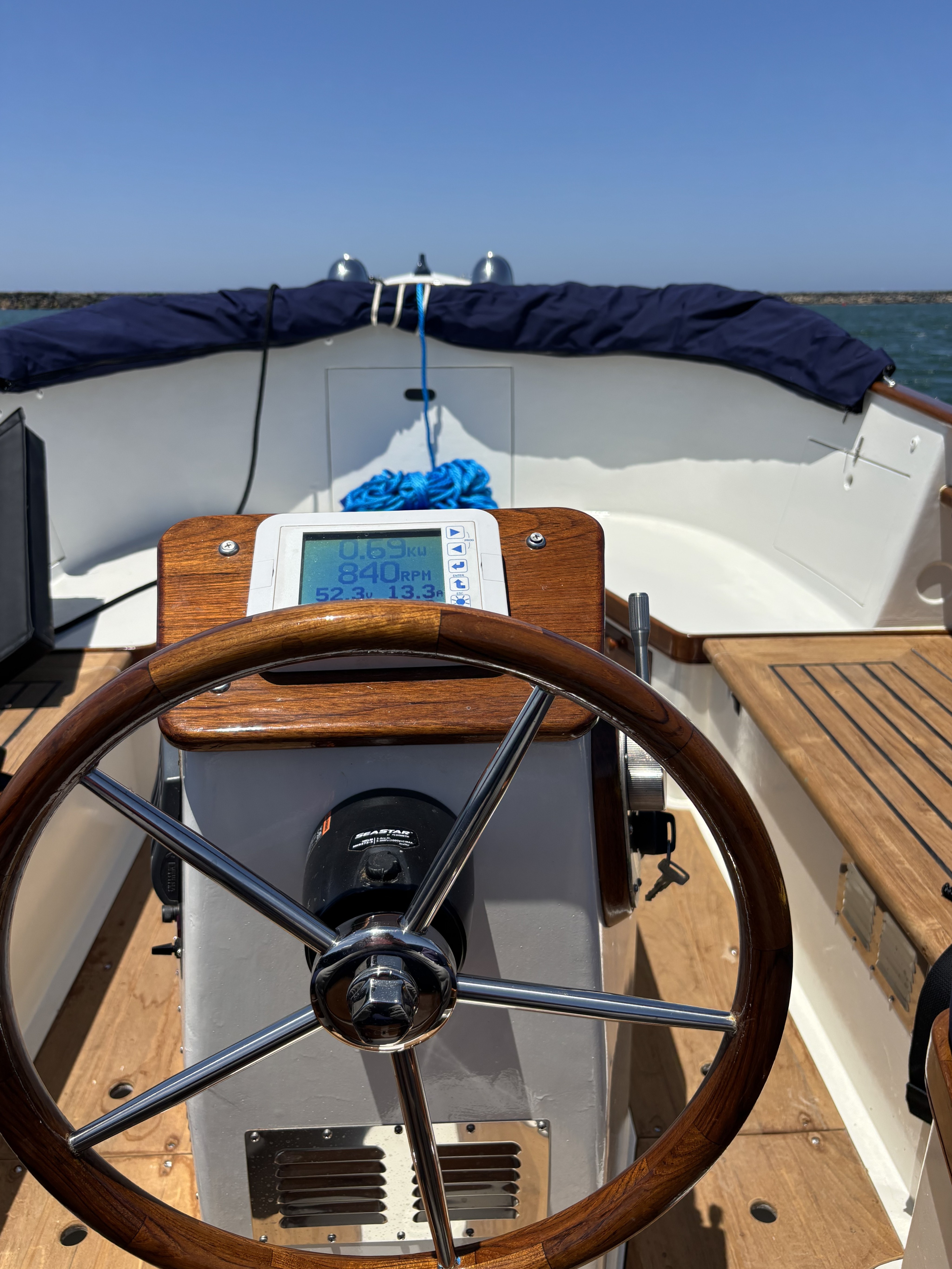

• Center console steering station
• Stainless steel steering wheel with varnished Teak rim
• Sea Star hydraulic steering
• Varnished wood emergency tiller
• Transom-hung rudder with bronze pintles, gudgeons and shoe
• Wood and FRP construction rudder

Electrical Systems and Equipment

• 12-Volt DC ships systems
• 12-Volt DC marine battery (1ea)
• Blue Seas main battery selector (on-off) switch
• 12-Volt DC circuit panel at center console port side
• DC / DC battery charger
• 48-Volt DC electric motor systems
• Dakota 96 AH Lithium batteries (2ea)
• 110-Volt AC engine battery charger

Canvas and Cushions

• All canvas and cushions Dark Blue
• Cockpit dodger with stainless steel bows
• Dodger storage cover
• Cockpit Bimini with stainless steel bows
• Bimini storage cover

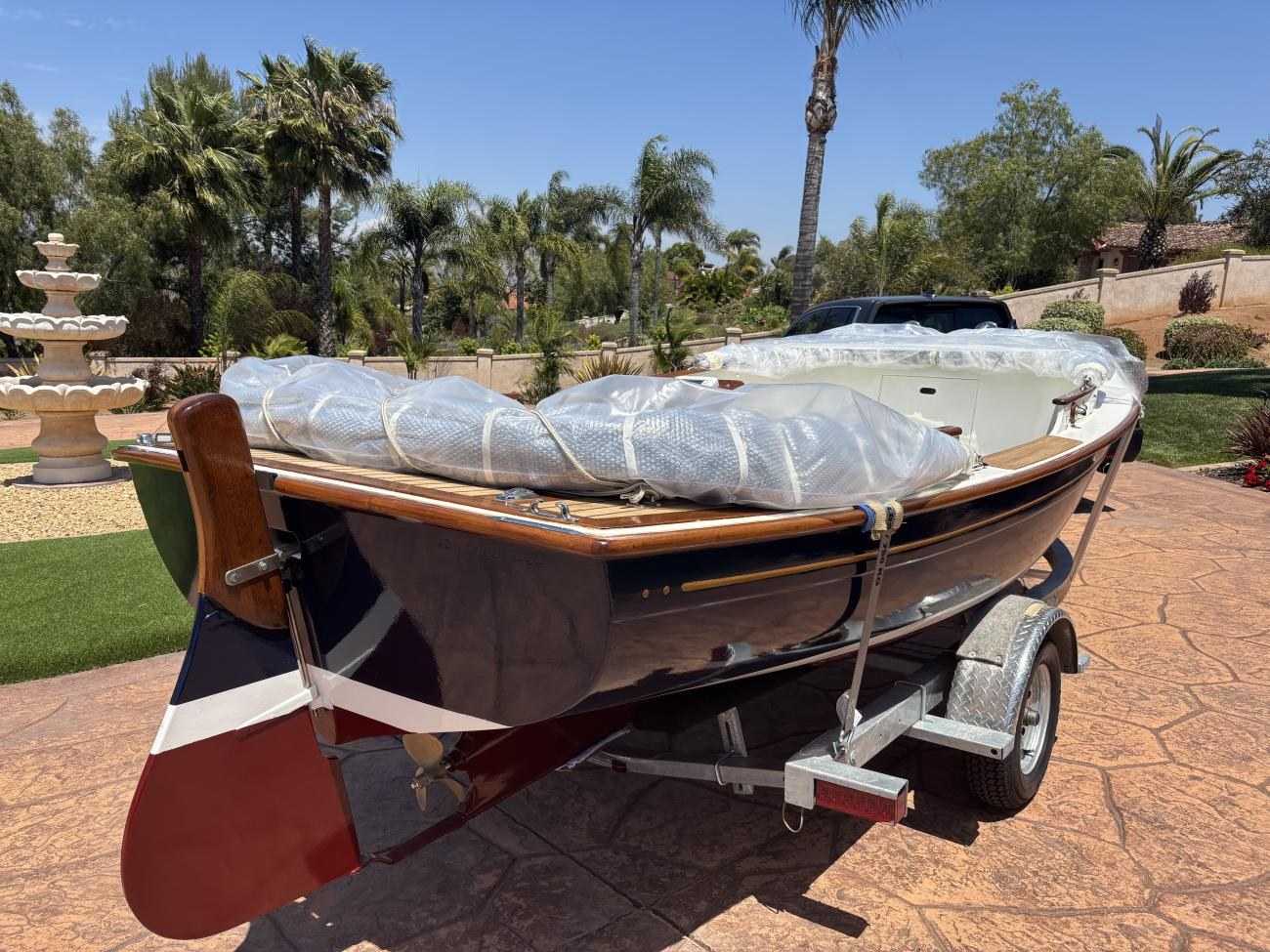

• Overall boat storage cover
• Seat cushions and back rests

Dewatering Equipment

• Rule electric / automatic bilge pump.

Ground Tackle

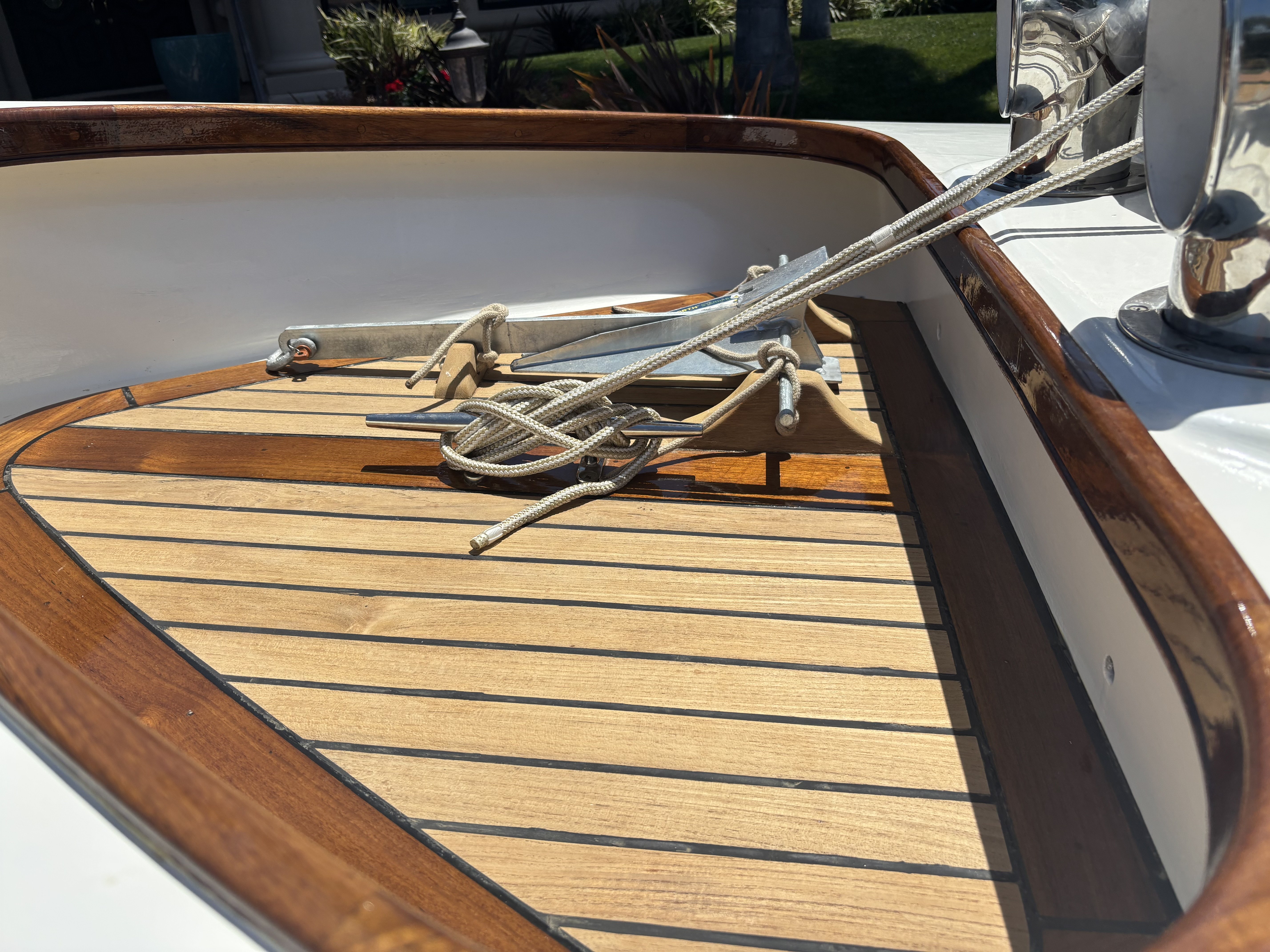

• 15lb Danforth anchor and rode
• Teak anchor storage brackets
• Anchor storage well forward

Safety Equipment

• Navigational lighting

Additional Equipment

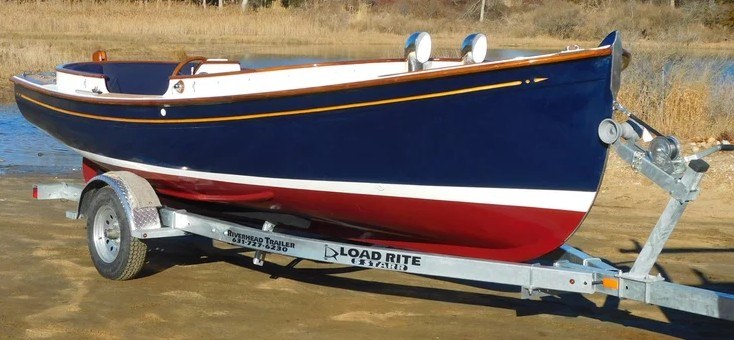

• 2025 Load Rite Trailer, Model 2200, bunk style, single-axle galvanized trailer
• Weight including trailer: 1,920 lbs.
• Removable boarding post
• Fenders and dock lines
• Porta-pottie storage under forward seat
